PX701HDH

3,500 ANSI Lumens 1080p Projector for Home and Business

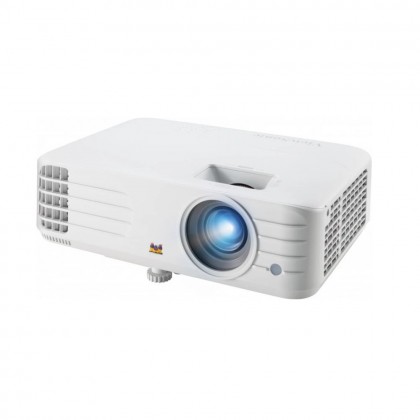

The ViewSonic PX701HDH is a high brightness 3,500 ANSI lumens projector featuring a Full HD 1080p resolution that offers impressive visual performance in a brightly lit living room or meeting room. The projector adopts the latest lamp design to extend lamp life of up to 20,000 hours under SuperEco+ mode, effectively reducing lamp replacement and maintenance costs. A digital lens shift allows users to make adjustments by remote control, it’s also compatible with the vColorTuner function for color profile exchange and adjustments. The dual HDMI inputs and USB power supply allow users to connect to a multitude of multimedia devices for gaming, movies, or a wireless dongle for wireless presentation.

Bright and Clear Images Anywhere

A 3,500 ANSI Lumens of brightness and a 1080p Full HD resolution guarantee bright and clear images in any environment, including rooms with high levels of ambient lights.

3,500 ANSI Lumens               1080p Full HD

Vivid Color Performance

ViewSonic’s proprietary SuperColor™ technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

SuperColor™ technology

The Energy-efficient SuperEco+ Mode for a Lamp Life of up
to 20,000 Hours

With the latest technology to enhance lamp life, the SuperEco+ mode greatly extends the durability of the PX701HD from 15,000 hours to 20,000 hours of use with a signal input.SuperEco+ Mode: when the projector has not received an input signal for 5 minutes, the projected images are dimmed by 40%, extending the lamp’s lifespan to 20,000 hours on average for reliable long-term usage.

Flexibility in Image Projection

The PX701HDH offers 10% flexibility of vertical image adjustment, so the users can shift the image up or down without distorting the image with remote control, making the installation quicker and easier.

Vertical Lens Shift

Color Profile Preference with vColorTuner

By using a cloud-based color profile exchange, users can create their own color profile to fit their preferences and share with others. Also, users can download other profiles from their projectors and fine-tune them as their own.

vColorTuner

Customized User Modes for Your Color Preference

Aside from ViewSonic’s default picture mode, two extra user modes were added to ensure that the users can save their preferred settings with up to a total of 7 color modes.

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and gives you the ability to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.

Integrated Power Source

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your favorite multimedia content.

USB Power Supply

Extensive Connectivity

Dual HDMI ports provide enough connectivity to support any of your HDMI multimedia devices, delivering a big screen experience for any occasion.

Dual HDMI

Immersive 3D Viewing

The PX701HDH is capable of projecting 3D content directly from 3D Blu-ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI connection.

Powerful Sound

The PX701HDH is equipped with a larger speaker, delivering immersive audio performance.

10W Speaker

Dimension & I/O Ports

SPECIFICATIONS

• Display



• Native Resolution: 1920x1080
  DMD Type: DC3
  Brightness: 3500 (ANSI Lumens)
  Contrast Ratio with SuperEco Mode: 12000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Lamp
  Light Source Life (hours) with Normal Mode: 5000
  Light Source Life (hours) with SuperEco Mode: 20000
  Lamp Watt: 203W
  Lens: F=2.0-2.05, f=15.843-17.445mm
  Projection Offset: 110%+/-6%
  Throw Ratio: 1.5-1.65
  Optical Zoom: 1.1x
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 1m-10.96m
  (100"@3.32m)
  Keystone: +/- 40° (V)
  Lens Shift V. Range: +/- 5% (Digital)
  Audible Noise (Normal): 31dB
  Audible Noise (Eco): 27dB
  Input Lag: 16ms
  Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
  *RB-Reduced Blanking
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  Horizontal Frequency: 15K-102KHz
  Vertical Scan Rate: 23-120Hz

• Input

  HDMI: 2
  (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm): 1

• Output

  Audio-out (3.5mm): 1
  Speaker: 10W
  USB Type A (Power): 1 (5V/1.5A)

• Control

  RS232 (DB 9-pin male): 1
  USB Type A (Services): 1
  (share with USB A Output)

• Others

  Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
  (AC in)
  Power Consumption: Normal: 300W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 2.59kg
  Gross Weight: 3.75kg
  Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
  Packing Dimensions: 415x168x297mm
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages

• Standard Accessory

  Power Cord: 1
  Remote Control: 1
  QSG: Yes
  Warranty Card: Yes (CN Only)

• Optional Accessory

  Lamp/Light Source: RLC-119
  Wall/Ceiling Mount: PJ-WMK-007
  Carry Bag: PJ-CASE-008
